Description

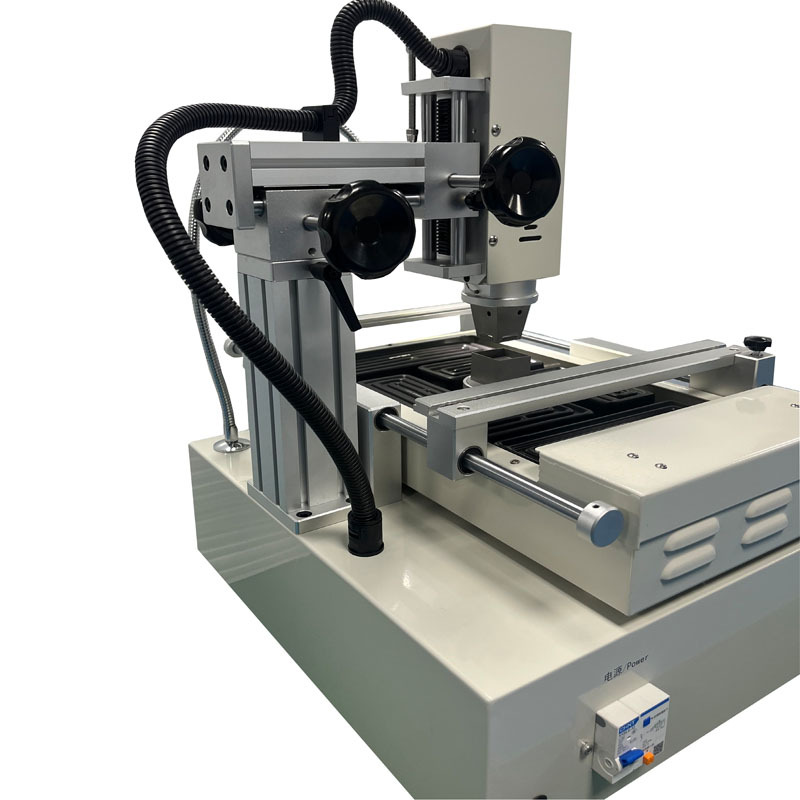

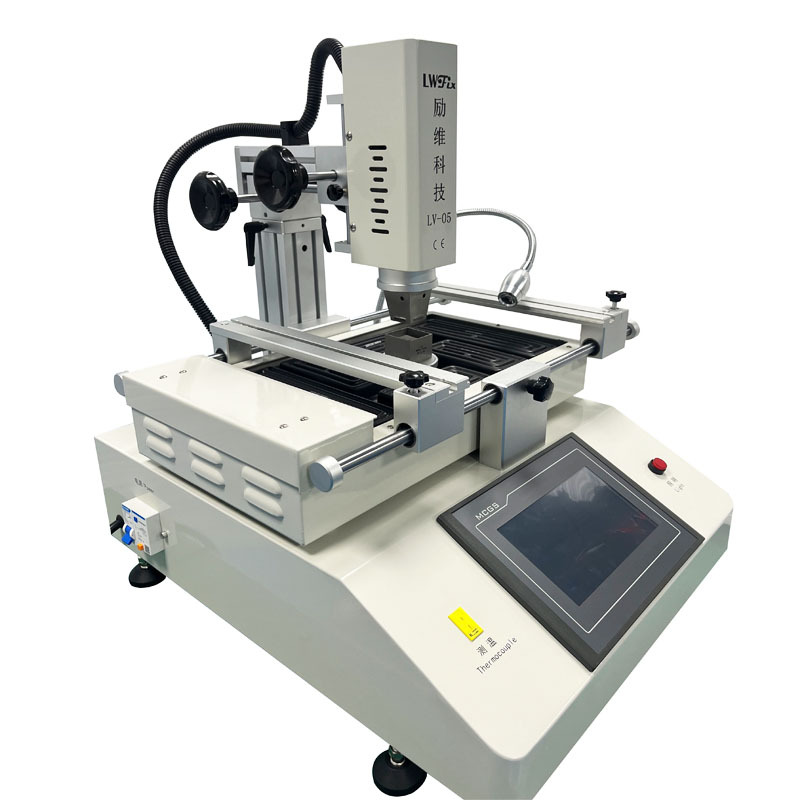

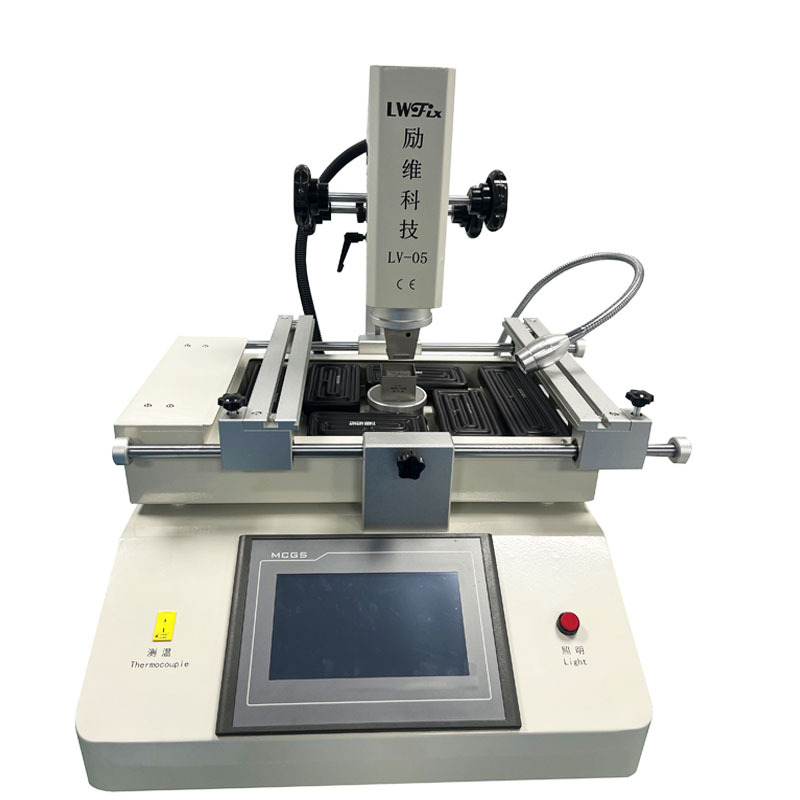

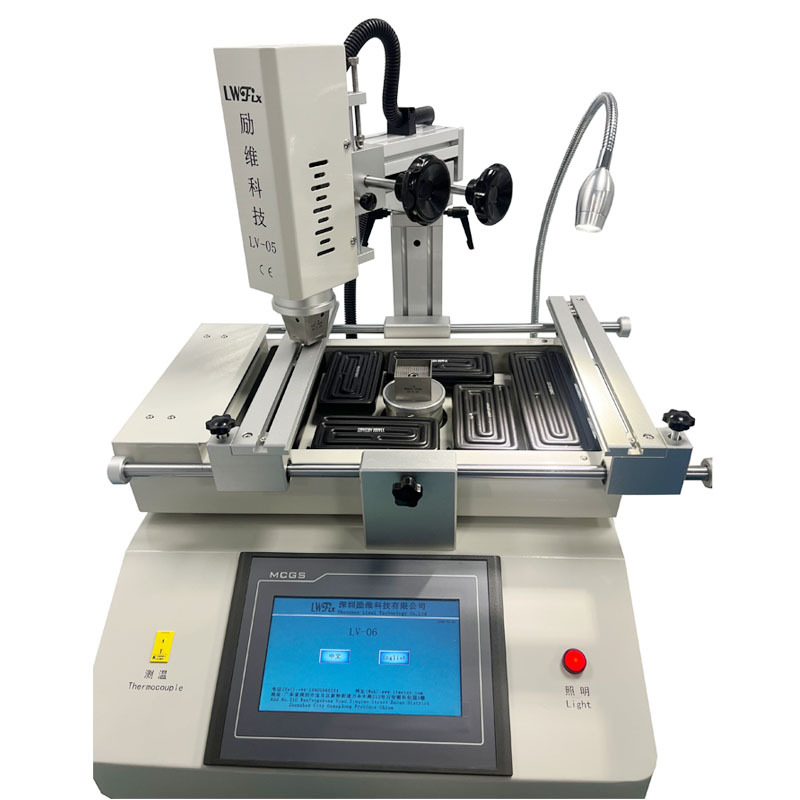

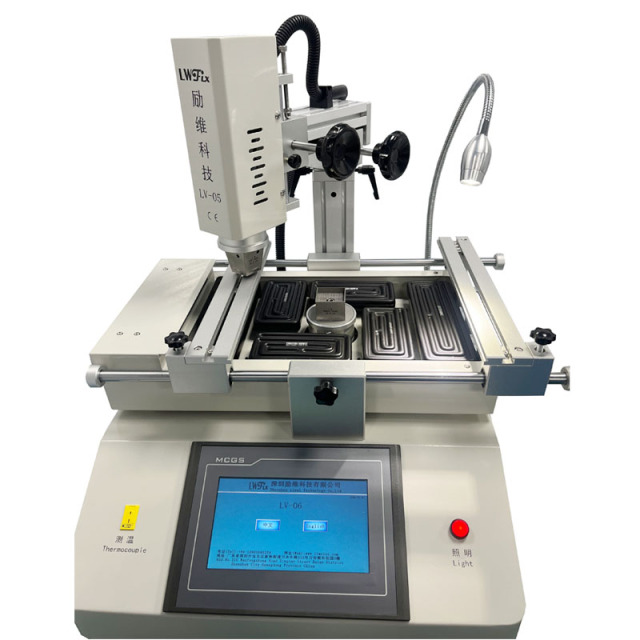

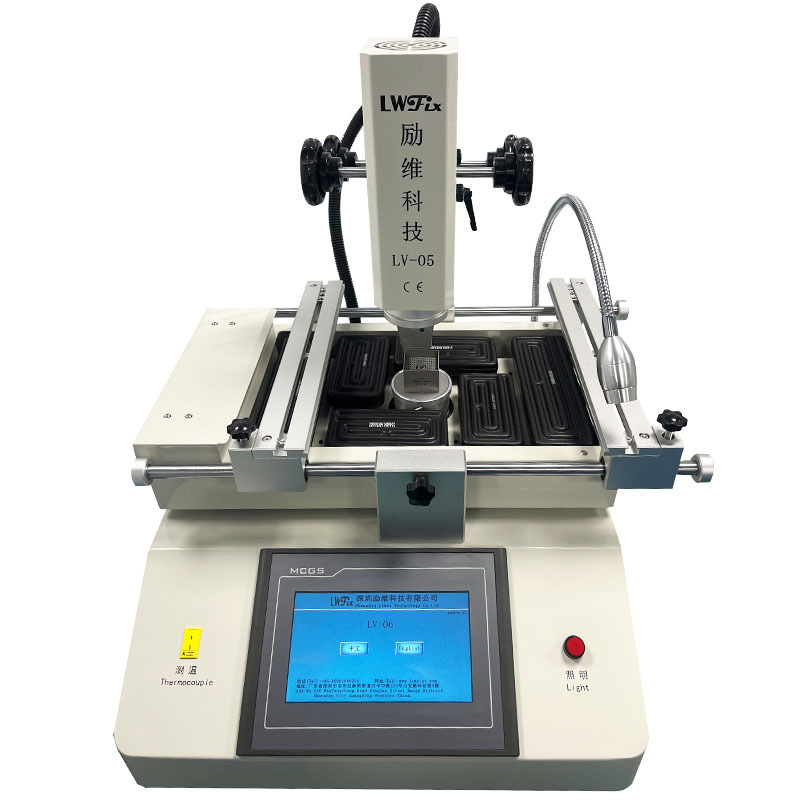

Laptop PS3/4/5 Motherboard Repair best budget bga rework station LV-05 China Factory
Why choose us?
1. We are the Manufacturer= own factory + machine design + Sheet metal produced by ourself + spray the powder + strong assemble the machine team + packaging + free training.
2. More than 11 years experiences in PCB BGA chips rework station, Over 20 R&D engineers.
3. Has been the biggest factory in the BGA rework field in China.
4. HUAWEI, TCL, ZTE, MEIZU, KONKA, LENOVO, FOXCONN vendor.
5. Over 100000 Global User.
6. Speedy and high quality customer service and whole-life after-sale service.
7. Deliver goods to customer all over the world with speed and precision.

best budget bga rework station Feature :

Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability.

Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.

High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.

Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.

Having alarm prompt function after welding is done, specially added early warning function for convenient operation.

It has Passed CE certificate.It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.

best budget bga rework station Technology Parameter:

Total Power	4500W
Upper Heating Power	800W
Lower Heating Power	1200W
Infrared Heating Power	2400W（1200W is controlled）
Power supply	(Single Phase) AC 220V±10 50Hz
Location way	V-shape card slot + Universal jigs+laser position
Temperature Controlling	K-type thermocouple closed loop control, independent temperature control, precision up to ±3 degree
Electrical Material	Touch screen + Temperature control module + PLC control
Max PCB size	330×310mm
Min PCB size	10×10mm
Sensor	1 unit
PCB Thickness	0.3-5mm
Suitable Chip Size	22mm-6060mm
Size	500×530×580mm
Weight	Net 30kg

Customer Show:

Where is it can be used for ?

Name: Laptop PS3/4/5 Motherboard Repair best budget bga rework station LV-05 China Factory
Brand: We are manufacturer of BGA repair stations
SKU: best budget bga rework station
Price: 780.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Packing & Delivery:

1, Standard Export Wooden cases for best budget bga rework station
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.

FAQ:

1. Who are we?
We are based in Guangdong, China, start from 2005,sell to Domestic Market(40.00%),North America(10.00%),South America(7.00%),Southeast Asia(7.00%),Mid East(7.00%),South Asia(6.00%),Africa(5.00%),Eastern Europe(5.00%),Central America(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Northern Europe(1.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
BGA Rework Station,Industry X-Ray Inspection System,x-ray smd reel counter,cof Bonding Machine,laser repairing machine
4.Why should you buy from us not from other suppliers?
1.Biggest manufacturer for BGA rework station in China with 15 years experience
2.Over 20 R&D engineers, 100000 global users
3.Professional after sales services for whole life technical support,Free training
4. Customized logo
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese

Contact Ways:

Att:Bella (Manager)

Wechat/Cell:+86 13266540971 (Whatsapp supported)
Whats App:+86 15218798689

Thanks for your Attention!
