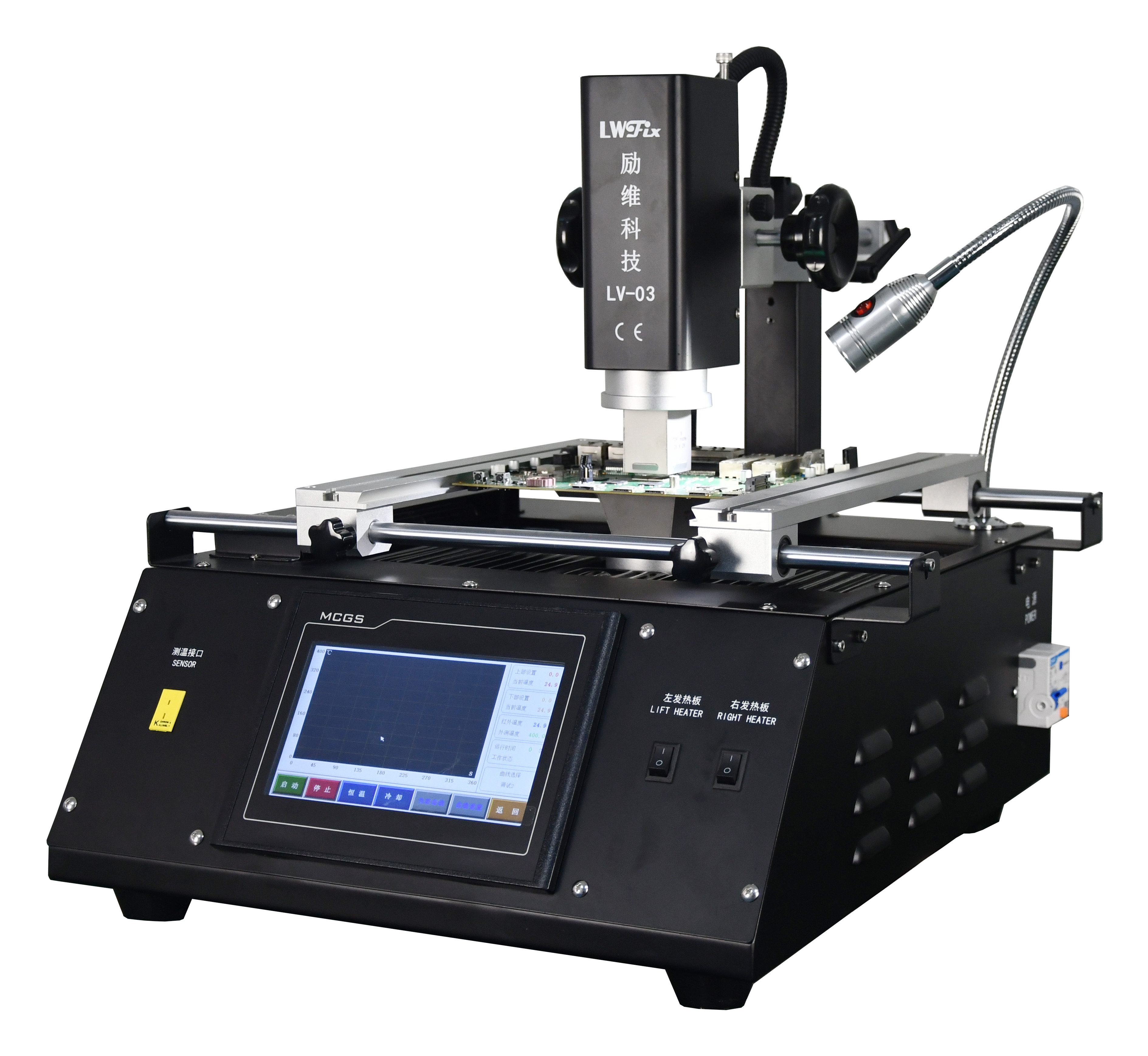

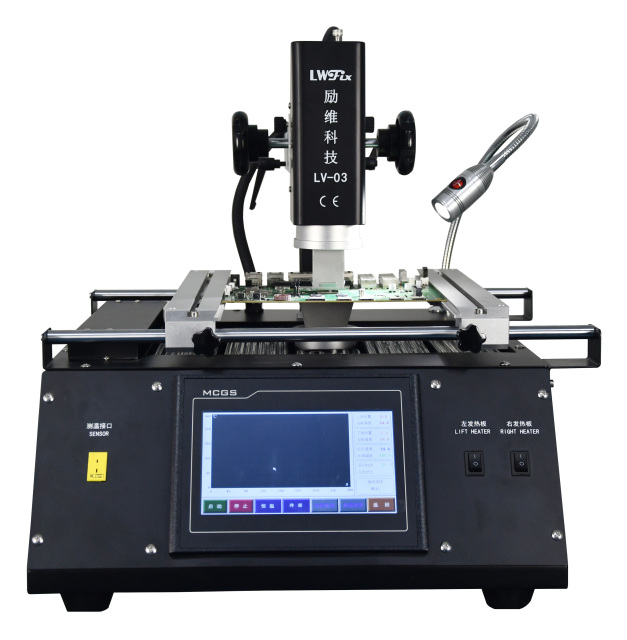

Repair Laptop Machine Specification :
Total power | 5100W |
Upper heater | 1200W |
Down heater | 1200W |
IR heater | 2700W(1200W Controllable) |
Power | (Single Phase) AC 220V±10 50Hz |
Location way | V Shape slot+universal jigs |
Temperature control | High precision K-type thermocouple (Ksensor) Closed Loop control, independent temperature measurement up and down |

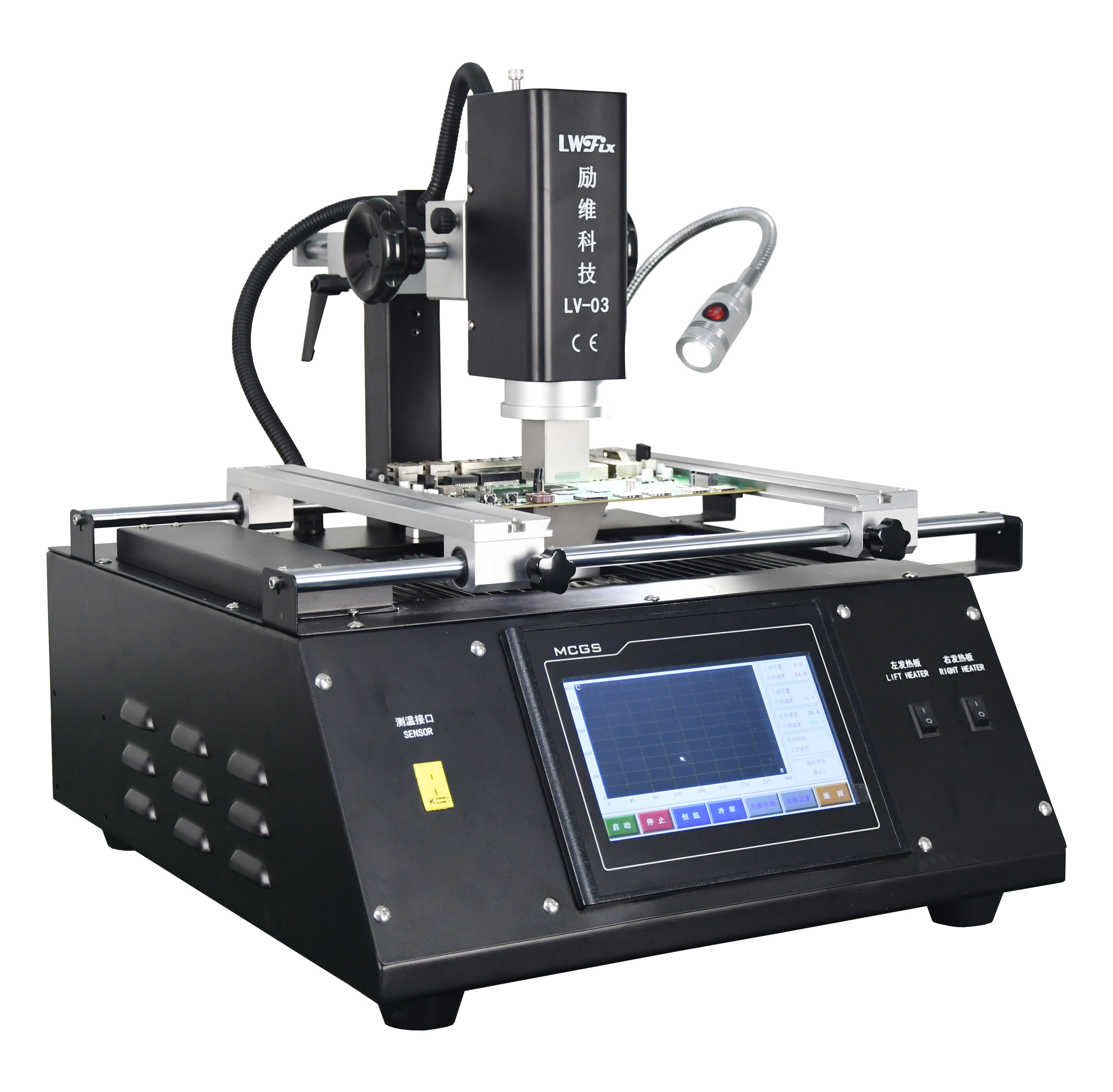

Electrical Material | single-chip microcontroller + touch screen |
Max PCB size | 370×335mm |
Min PCB size | 20×20mm |
Sensor port | 1 |
PCB thickness | 1-5mm |
Apply chip | 1-50mm |
Overall dimension | L470×W485×H490mm |
Machine weight | Net weight 28kg |
bga rework station finetech Feature :
1 Independent three-zone temperature control system
2 The upper temperature zone is heated by hot air, while the lower temperature zone is heated by hot air combined with infrared heating. Each of the three temperature zones can be independently controlled.

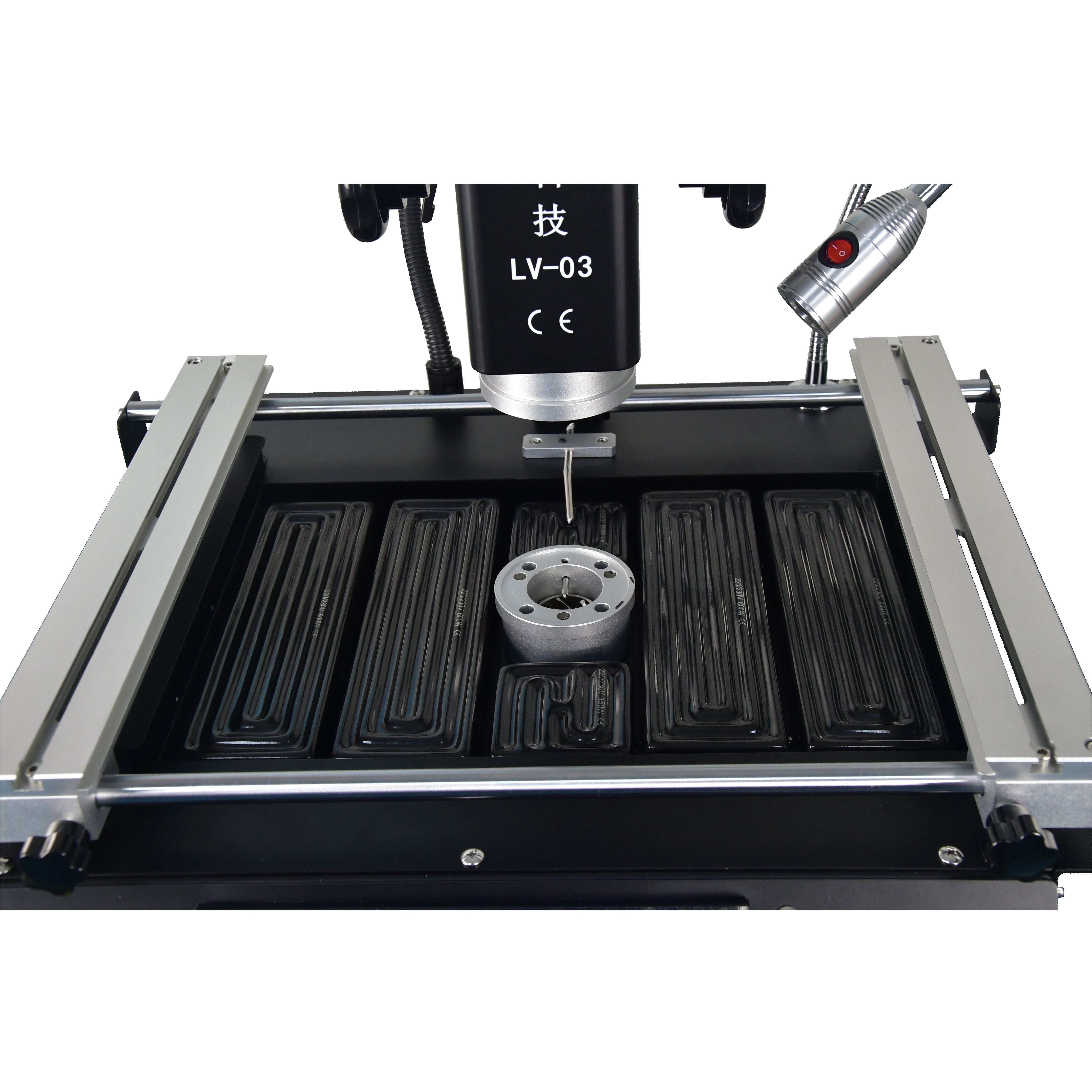

3 The method of simultaneously heating the upper temperature zone, lower heating zone and IR temperature zone can easily handle lead-free circuit boards, CPU sockets of circuit boards and large BGA chips. The large-area infrared preheating ensures that the PCB will not deform due to temperature differences during disassembly or welding.
4 This machine is easy to operate and quick. You can simply place the PCB board on the tray or the tray slot and it will start heating up for use. By moving the upper heating head back and forth and rotating it to any position on the board surface, you can achieve the desired heating effect.

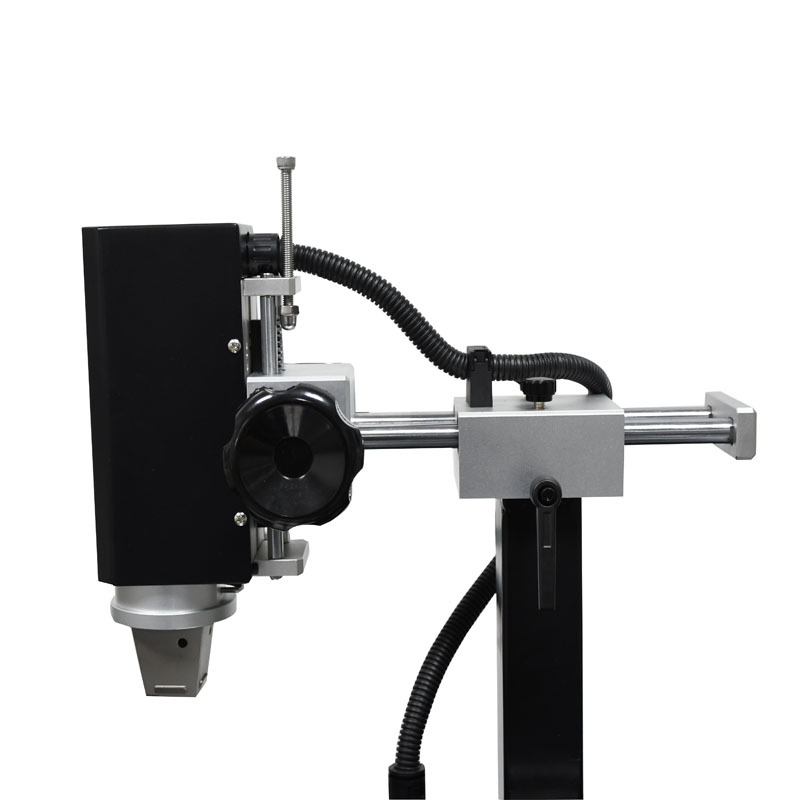

5 The upper temperature zone can be manually rotated left or right to move in any direction.
6 Using high-precision thermocouples, precise temperature detection is achieved.

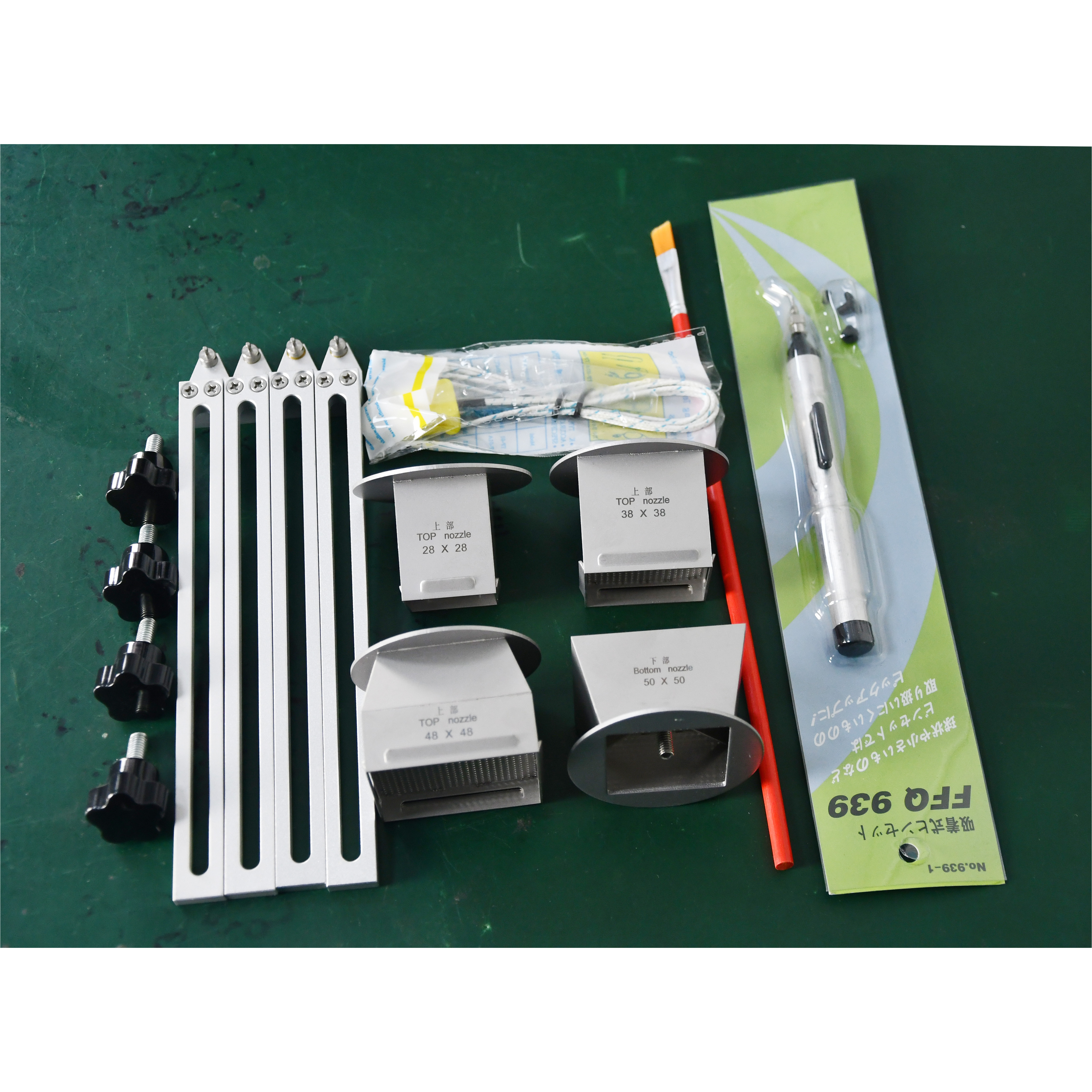

7 Equipped with various sizes of alloy hot air nozzles, which can rotate 360°, easy to replace, and can be customized according to actual requirements.
8 For high-capacity PCBs and other applications with high-temperature requirements, as well as lead-free soldering, it can be handled easily.
9 The support plate uses linear bearings for sliding, allowing for precise adjustment of movement.
10 A high-power constant-current fan provides infrared cooling for the PCB motherboard, enabling rapid cooling.
1. For repairing Mobile phones
2. For repairing Notebooks/ Laptops/computers
3. For repairing game consoles, especially for XBOX360/PS3/WII
4. For repairing any other mainboards with size from 22x22mm to 460x380mm
5. For preheating chips or mainboards before soldering to improve rework efficiency.
Want to know other model Repair Laptop Machine? pls click the picture.
Packing & Delivery:
1, Standard Export Wooden cases for Repair Laptop Machine
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
