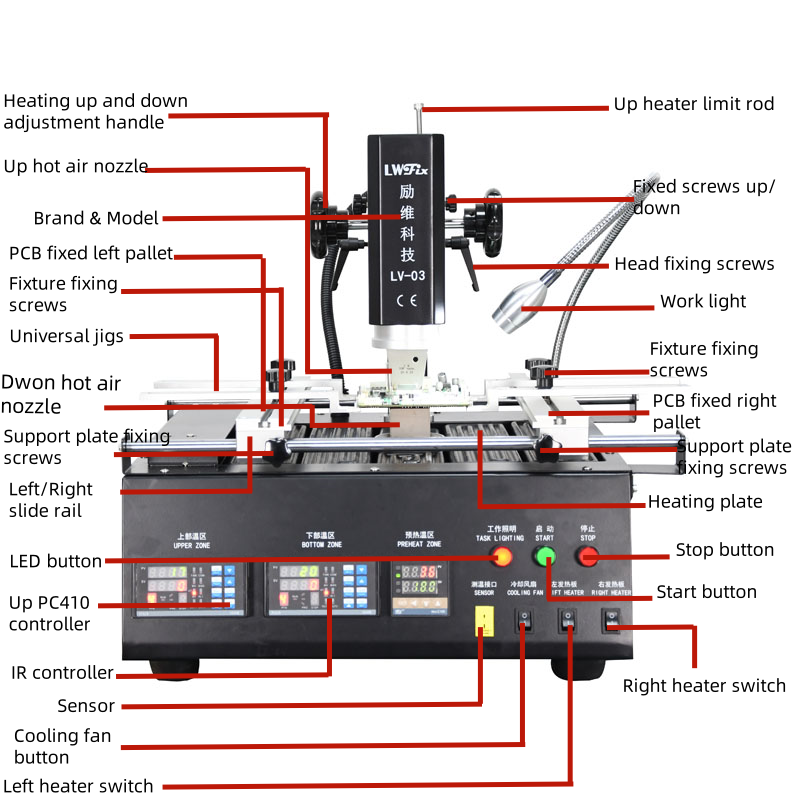

Independent three-temperature zone temperature control system
The upper temperature zone is heated by hot air, and the lower temperature zone is heated by IR infrared, which can be controlled independently.
The upper temperature zone and IR temperature zone are heated at the same time, and the principle of rapid cooling of cross-flow fan ensures that PCB will not be deformed during disassembly or welding;

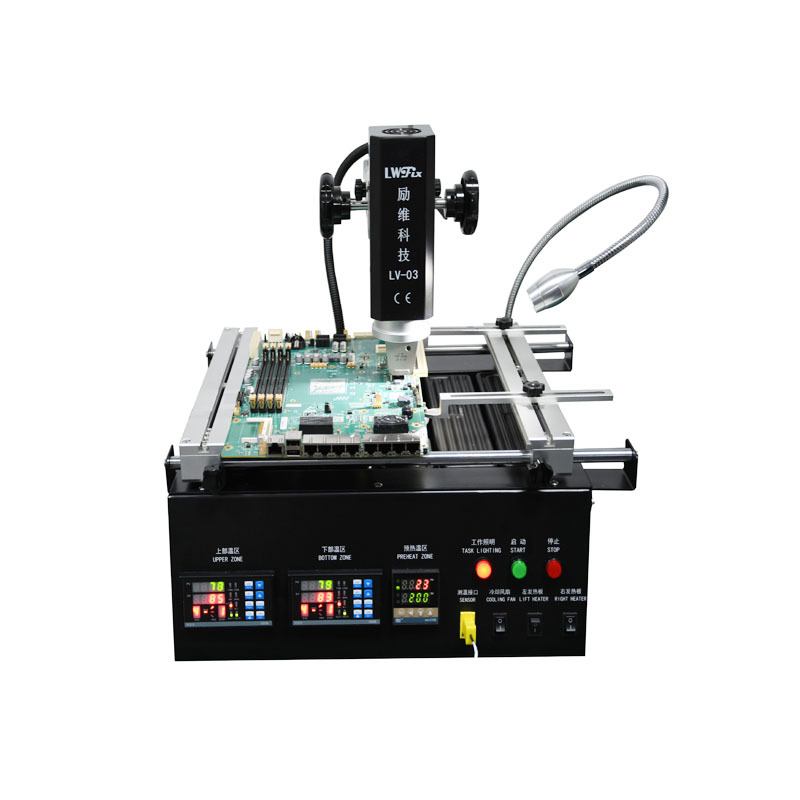

The machine is simple and fast to operate, can directly place the PCB motherboard on the support bar, by moving the heating head before and after and rotating to any position on the board surface;

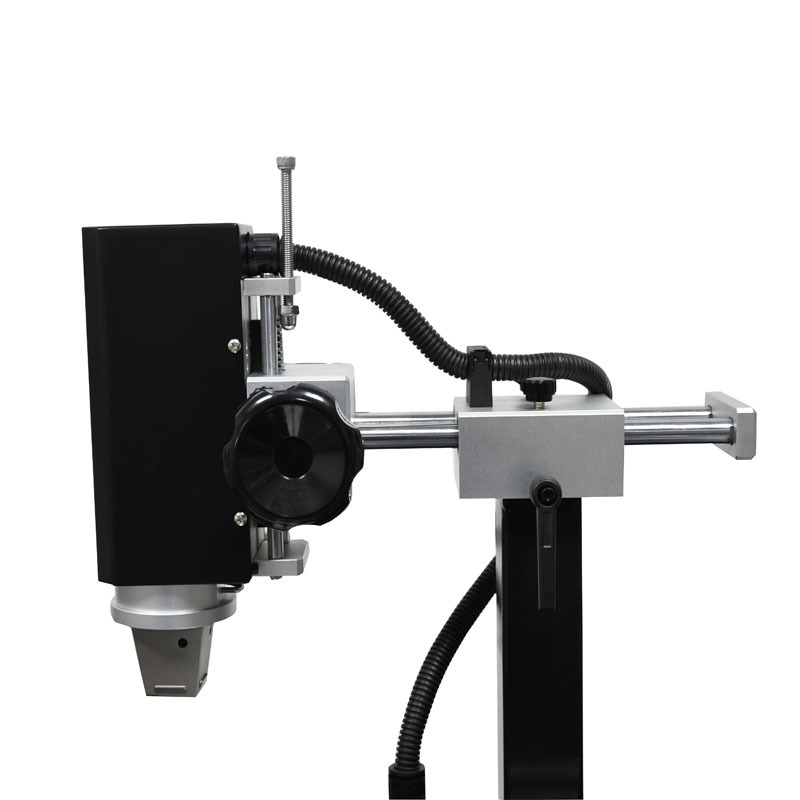

The upper temperature zone can be moved in any direction of manual rotation;
Using high-precision thermocouples to achieve precise temperature detection;

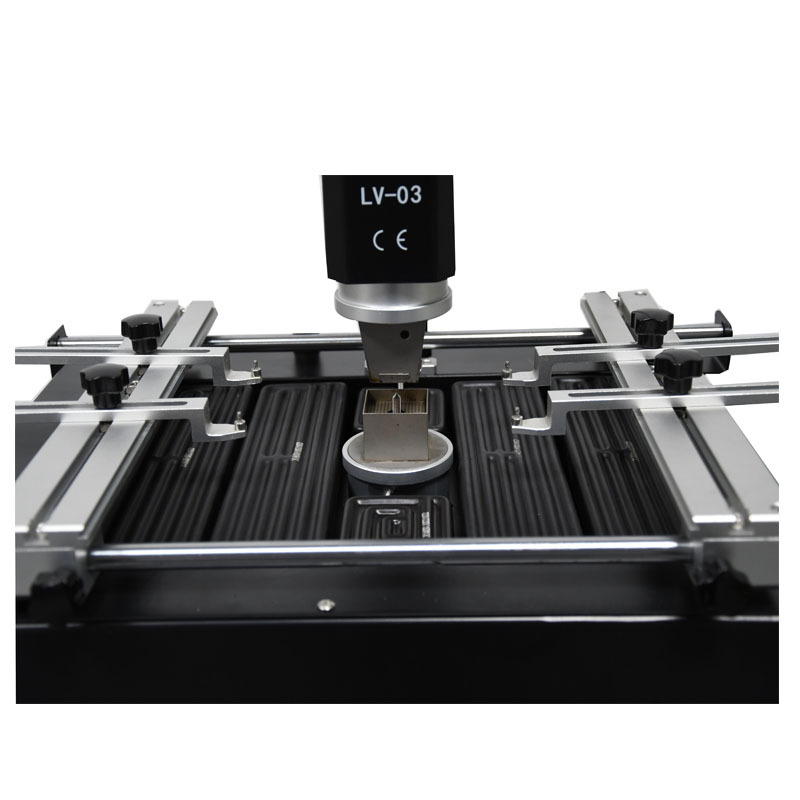

Equipped with a variety of different sizes of alloy hot air nozzle, 360° rotation, easy to replace, can be tailored according to actual requirements;
For large heat capacity PCB and other high temperature requirements, lead-free welding can be easily handled.
|
Total power |
4300W |
|
Upper heater |
800W |
|
Down heater |
800W |
|
IR heater |
2700W |
|
Power |
(Single Phase) AC 220V±10 50Hz |
|
Location way |
V Shape slot+universal jigs |
|
Temperature control |
High precision K-type thermocouple (Ksensor) Closed Loop control, independent temperature measurement up and down |
|
Material |
PC410 Temperature control instrument +C10 temperature control instrument |
|
Max PCB size |
370×335mm |
|
Min PCB size |
20×20mm |
|
Sensor port |
1pcs |
|
PCB thickness |
1-5mm |
|
Apply chip |
5-40mm |
|
Overall dimension |
L470×W420×H470mm |
|
Machine weight |
Net weight 28kg |
Want to know other model Infrared Welding Soldering Machine? pls click the picture.
Customer Show:
Packing & Delivery:
1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
